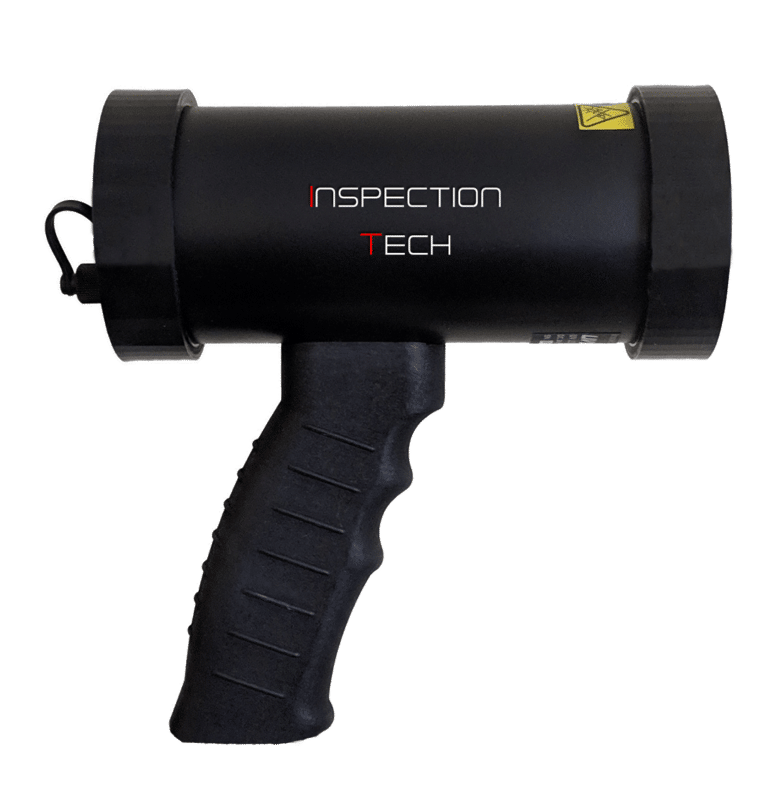

UVee™ · UV inspection lamps
Intelligent UV lamps for fluorescent NDT
The world’s first intelligently controlled handheld UV inspection lamps. Built-in ITECP control keeps UV output exactly where it should be, with up to eight times the battery life of competing lamps.
< 3 s
To full power and stable output
Up to 8×
Battery life compared with competitors
365 nm
Peak UV-A, 100% free of UV-B and UV-C
2 years
Warranty on lamp and battery
Total compliance with ASTM E3022 · Rolls-Royce RRES 90061 · Airbus AITM6-1001
ITECP embedded controller
A lamp that manages itself
Every UVee lamp has an ITECP embedded controller processing unit, so the light you inspect with is the light your procedure specifies.
- Far tighter control of luminous output
- Optimised battery management for the longest operating time
- Compensates for LED temperature, so UV output stays at the required level
- Full power and stable output in less than three seconds
Every unit ships with a manufacturer’s certificate of conformance for fluorescent liquid penetrant and magnetic particle testing.
Optical performance
Clean, even UV light

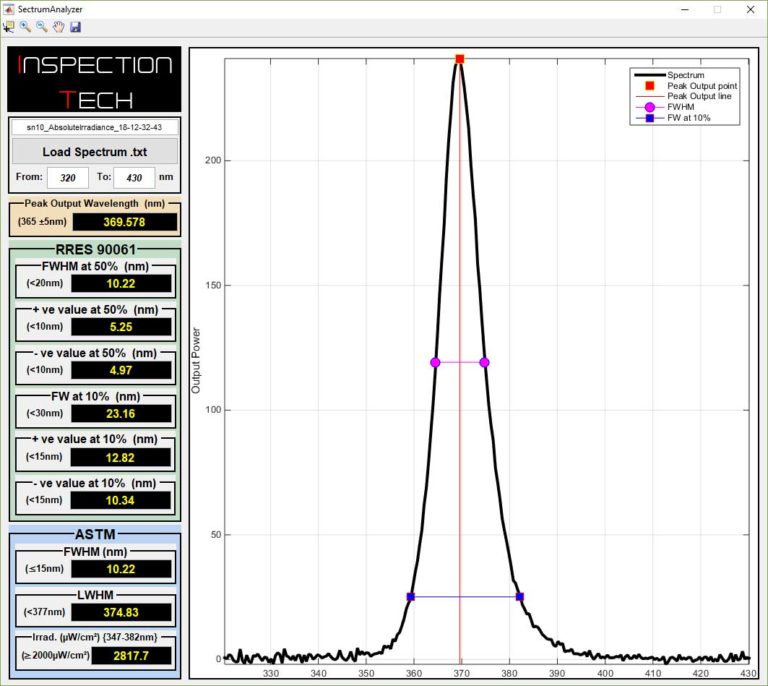

Extremely tight spectral range
Peak output at 365 nm ± 5 nm with a full width at half maximum under 15 nm, and no UV-B or UV-C.
Extremely uniform, wide-field beam
A consistent spot with less than 10 lux of visible light at 38 cm, so fluorescent indications stand out.
Models
Choose your UVee
Three handheld lamps and an overhead lamp for wash stations, all with the same intelligent control.
