UVee BeamTM handheld UV Lamp for fluorescent NDT£1200
2yr Warranty*

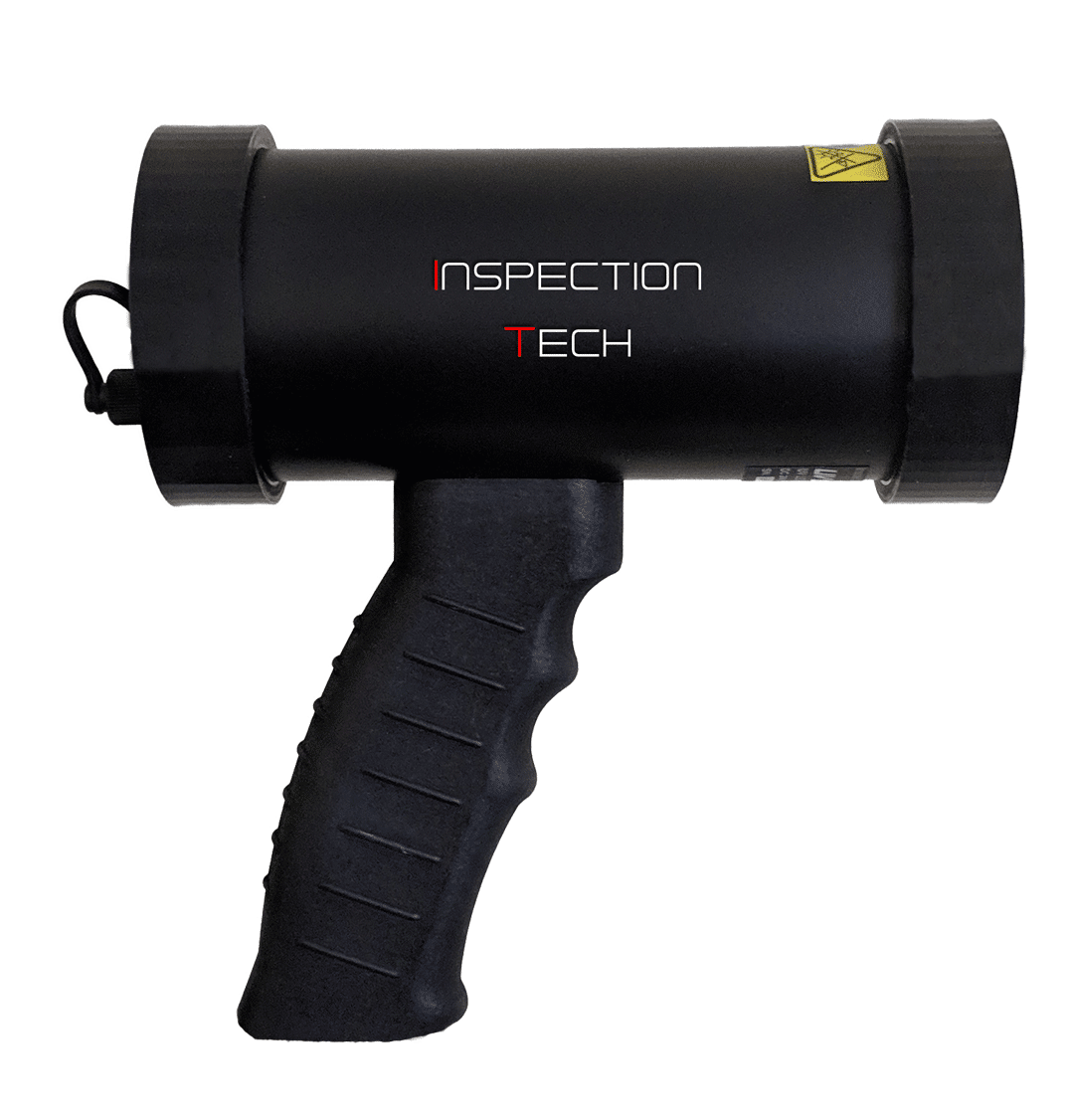

UVee BeamTM Intelligent UV Inspection Lamp
The UVee BeamTM handheld UV Lamp for fluorescent NDT (non-destructive testing) is the world’s first Intelligently controlled hand-held black light, applications like fluorescent penetrant testing and fluorescent magnetic particle inspections.
Total compliance with:
-
- Rolls Royce RRES90061
- Airbus AITM6-1001
- ASTM E3022
All our Lamps have the ITECP Embedded Controller Processing unit. The ITECP provides the following benefits:
-
- Far tighter control of luminous power outputs
- Optimised battery management provides the longest operating time
- Guarantees that UV output remains at the required level by compensating for temperature of the LEDs
- Full power and output stability in less than 3s!
- Total weight including battery is only 650g
Every UVee BeamTM handheld UV Lamp for fluorescent NDT is supplied with a manufacturer’s certificate of conformance for use with fluorescent liquid penetrant and magnetic particle testing.
2yr warranty*
Packaged shipping information:
Weight:2.3Kg
Dimensions: H:285mm x W:330mm x D:150mm
| Dimension | 80 x 170 x 190 mm |
| Weight | 540g |
| Mounting | ¼” Tripod mount |
| Battery | 2x Li Ion cells, 25Whr |
| Battery charging time | Approx. 3 Hours |
| Low battery indicator | At 15% charge |
| Charging while in operation | Yes |
| DC Voltage | 12V |
| Current | 0.5A / 1A while charging |
| Service Life (LEDs) | 30 000 hrs |
| Intensity | Typical irradiance of 4500µW/cm2 at 38cm |
| UV-A Wavelength | Peak at 365nm ± 5nm |
| UV-B Wavelength | 100% Free |
| UV-C Wavelength | 100% Free |
| Maximum beam diameter | 15cm |
| FWHM | < 15nm |
| Visible light | < 10 lux at 38cm |
| Working temperature | 0°C to 45°C |
| Barrel material | Anodised aluminium |
| Handle material | Nylon |
| Body protection material | Flexible PLA |
| Certifications | ASTM E3022, Rolls Royce RRES90061, AITM6-1001 |
| Rating | IP65 |
| Warranty* (excl. battery) | 2 Years |
| Battery Warranty | 2 Years |
| Included in the box | Rigid carry case, Uvee lamp, Charger with extension cable, User Manual, Full set of conformance certification documents and validation reports for Nadcap audits |
